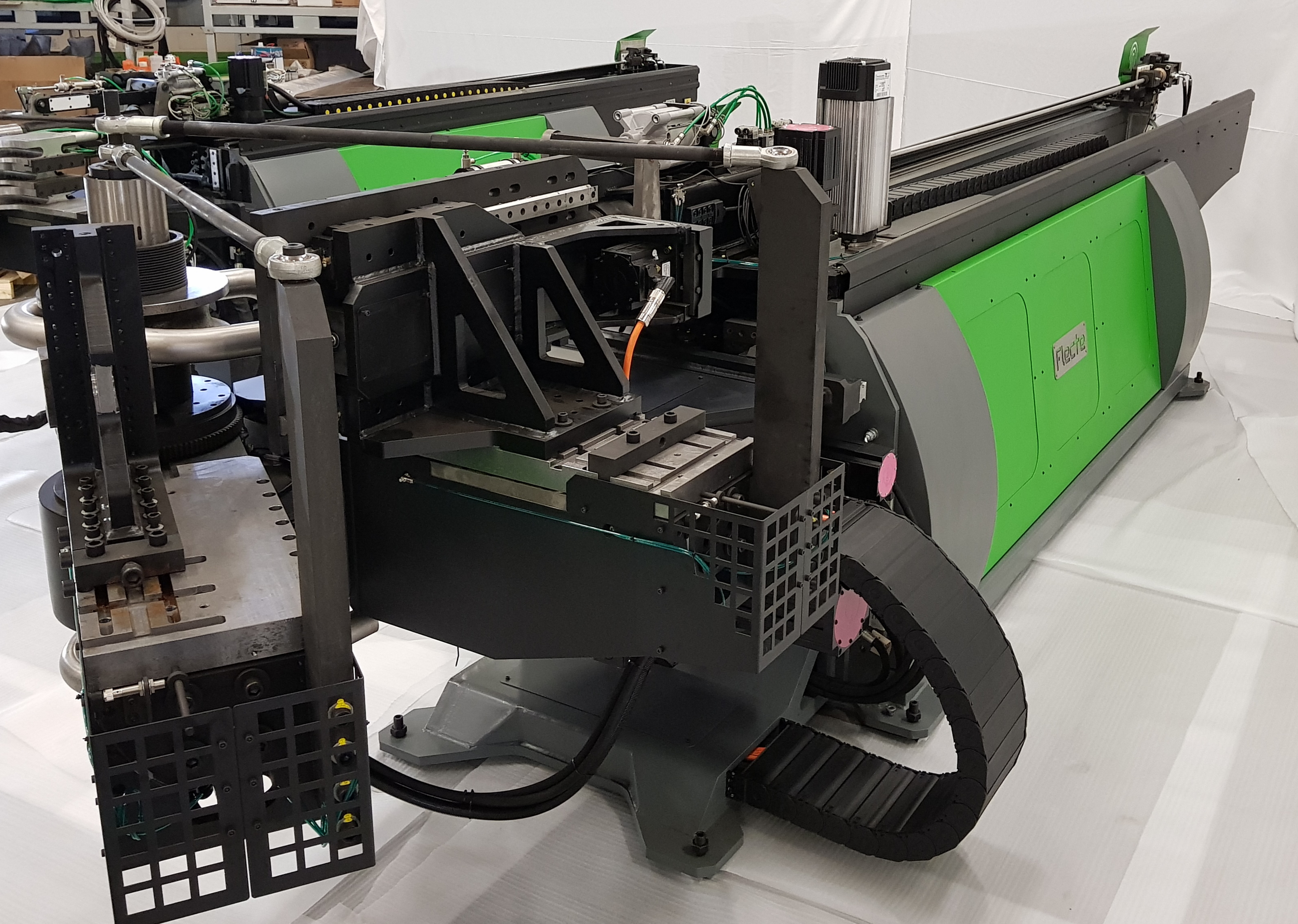

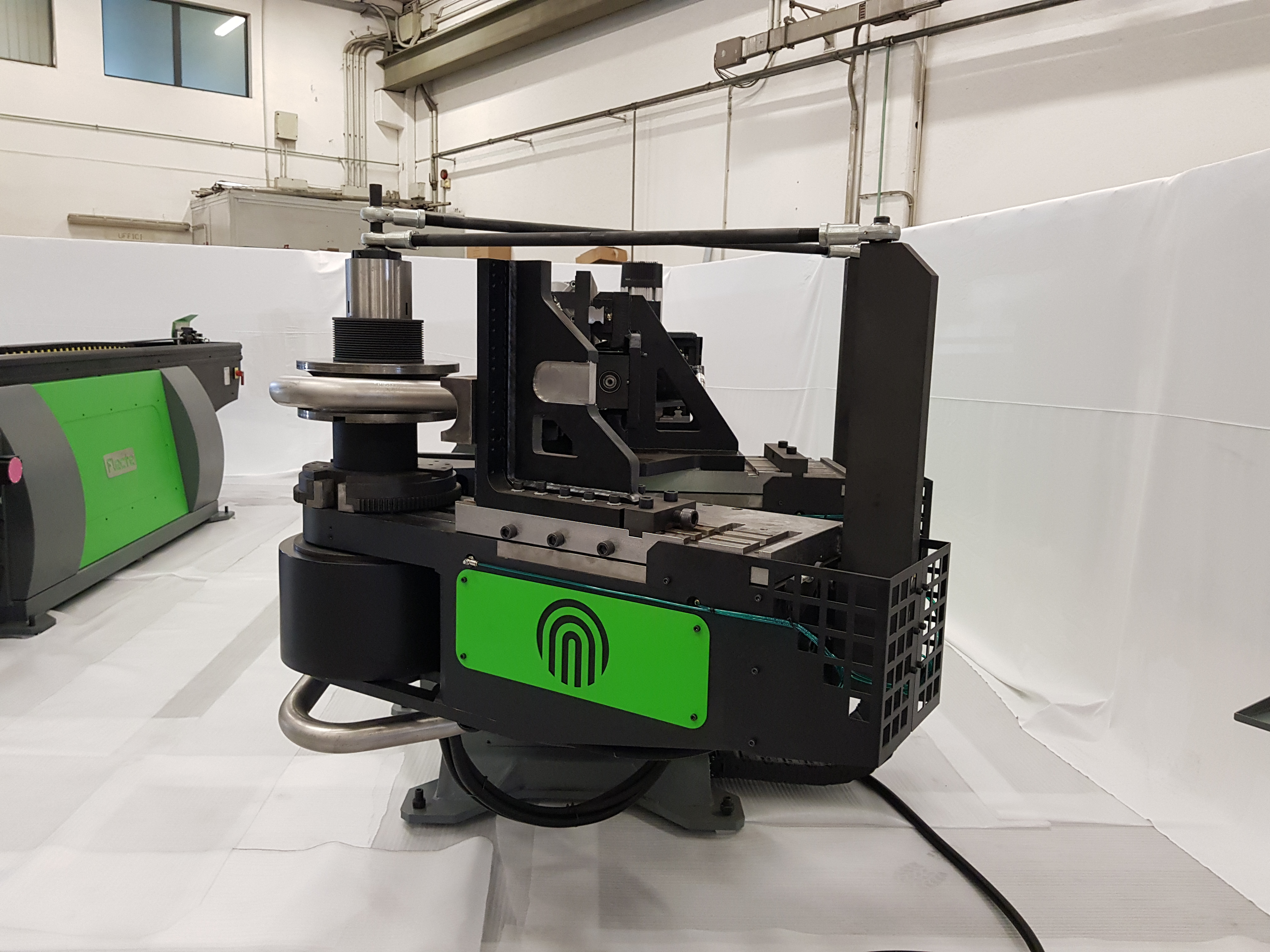

VEX 905
5 CNC Axes
Hybrid tube bending – multiple stacks – 5 CNC axis – for a variety of tube profiles with mandrel and roll bending.
Type: Bending Machine
Technical data model VEX 905
| Dimension | |
|---|---|
| Width at R=0 | 72.84 inch (W) |
| Length | 283.47 inch (L) |
| Basement width | 53.54 inch (BW) |
| Height | 63.00 inch (H) |
| Weight | 13228 lbs
|
| Electric Axis | 5 |
| Data's Work | |
|---|---|
| Useful length over the clamp | 157.48 inch (C) |
| Useful length over the mandrel | 248.03 inch (M) |
| Working height | 50.59 inch (WH) |
| Under-head length | 43.31 inch (UH) |
| Bending head height | 20.08 inch (HH) |
| Bending head radius | 7.87 inch (HR) |
| P1 center | 1.97 inch (P1) |
| Clamp passage | 3.94 inch
|
| Maximum bend radius | 13.39 inch
|
| Electrical Specifications
|
|
|---|---|
| Maximum power | 35 kW |
| Voltage | 400 V |
| Axis Velocity | |
|---|---|
| Bending | 65 °/sec |
| Tube movement | 31.5 inch/sec
|
| Tube rotation | 350 °/sec |
| Tube offset
|
9.84 inch/sec
|
| Tube stack
|
5.12 inch/sec
|
| Precision | |
|---|---|
| Bending | 0.05° |
| Tube movement | 0.0020 inch
|
| Tube rotation | 0.05° |
| Tube offset
|
0.0020 inch
|
| Tube stack
|
0.0020 inch
|
| Bend Capacity | |
|---|---|
| Max Iron tube with mandrel | 3.54x0.16 inch
|
| Max Iron tube roll bending
|
2.56x0.12 inch
|
| Max aluminium alloy tube with mandrel | 3.94x0.12 inch
|
| Max aluminium alloy tube roll bending
|
3.54x0.12 inch
|
